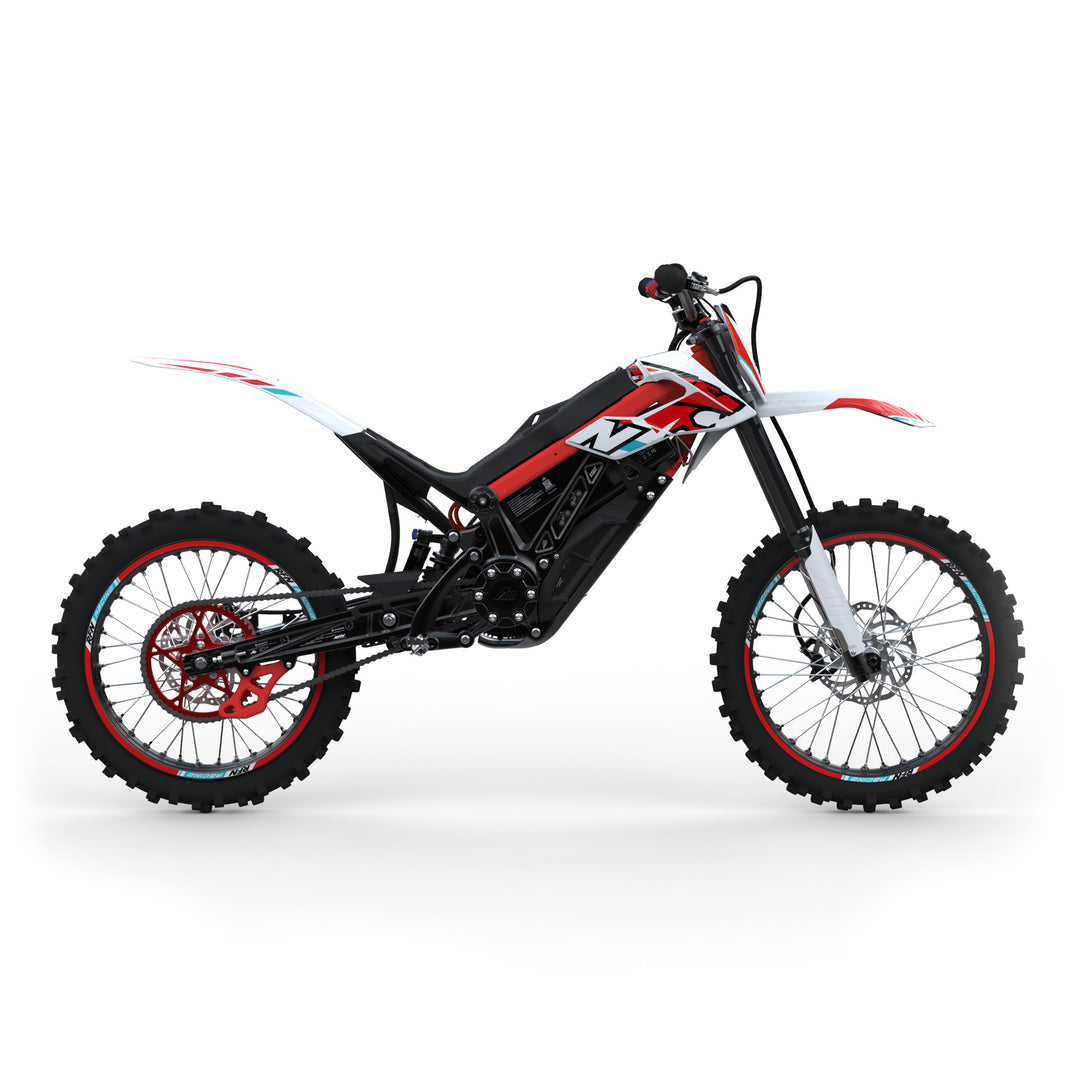

RFN ARES RALLY Electric Dirt Bike

ARES RALLY MX

Speed & Range

• Range 80km (Cruising at 40km/h on flat paved road)
• Top Speed 75km/h 13-58T - 270N.m (on Standard Sprockets)

Battery

• 74V / 2,590Wh, 35AH LG Premium lithium cells. Battery is also removable and can be charged in bike or separately.

Ride Modes

• Mode 1 Tortoise mode: The ultimate mode energy conservation exploration. Limited to 25 km/h with 3.5hrs battery range.
• Mode 2 Rabbit mode: Enduro or active trail riding. 1-2 h riding time.
• Mode 3 Rocket mode: Ultimate 10sec Burst of Power. Track and race mode, maximum torque and speed, riding time up to 1h.
• Mode 4 Reverse mode: Limited to 9 km/h.

Features

• Hill Ability Up to 80% Inclines
• Seat Removable to convert bike into Trials Bike
• Warranty 1 Year
• Waterproofing IP67

Brakes

• Front and Rear 4-piston hydraulic disc, 210mm

• EABS Electric Regenerative Braking

Charging

• 2-3h with Fast Charging Functionality

Display

• LCD Multi-Function (ODO, Trip, Battery Level, Speed etc)

Controller

• 150A Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.

Drivetrain

• Electric Motor Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chain with DXS
• Sprocket 13-58T Standard (Optional 11-58T Available)
• Rated Power 5 kW
• Peak Power 11 kW
• Max Torque of Motor 58 N·m
• Max Torque of Rear Wheel 270 N.m or 305 N·m with Optional 11-58T Sprocket

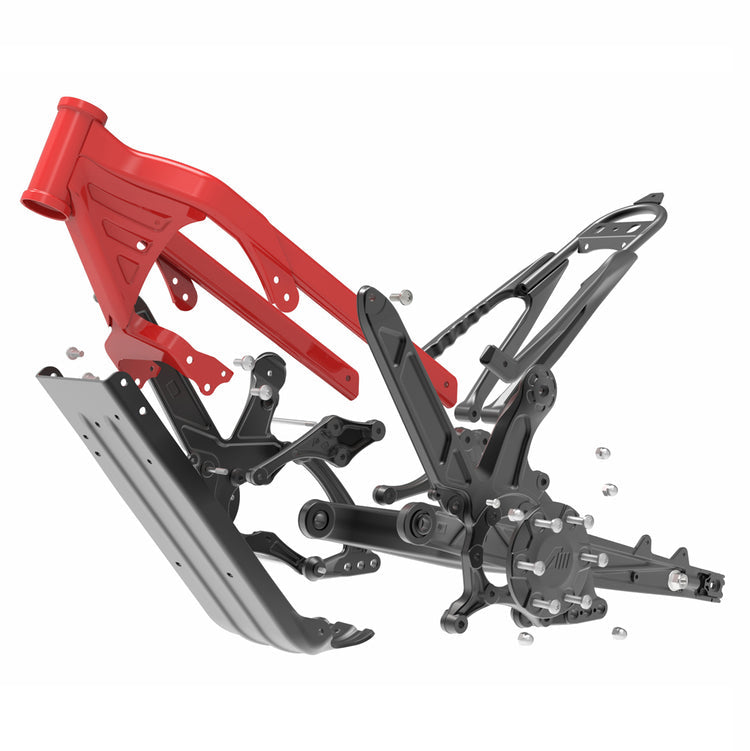

Construction

• Frame 6082 aluminium extruded, forged, CNC machined and steel frame
• Handlebars 6061 aluminium, 760mm length

Suspension

• Front Upside Down Fork, 200mm travel, Fully adjustable
• Rear Mono-Shock, 74mm travel, adjustable

Wheels & Tyres

• Hubs Forged and CNC aluminium RFN hubs with 20mm axle.
• Rims F 19"/ R 18" (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium.
• Tyres F: CST CM721 70/100-19 off-road,
• Tyres R: CST CM722 90/100-18 off-road

Dimensions

• Fork Angle 340mm - 13.39''
• Offset 15mm in triple clamps, 45mm in forks.
• Seat Height 860mm - 33.86''
• Overall 1,937 x 770 x 1,080 mm
• Ground Clearance 340 mm
• Trail 111mm - 4.37''
• Wheel Base 1,330mm - 52.36''

Weights

• N.W of Battery 15 kg
• N.W of Complete Bike 68 kg
• Max Loading 120 kg
